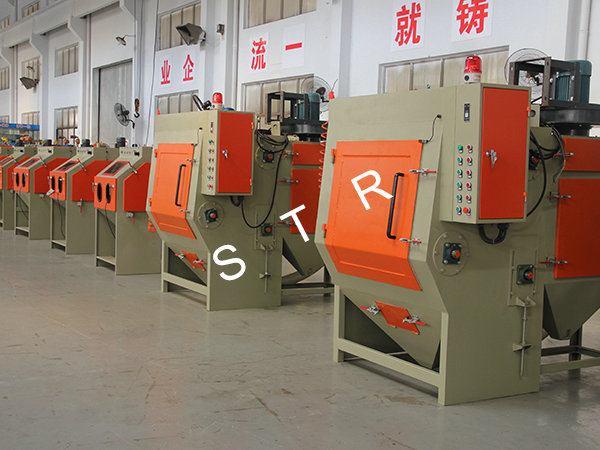

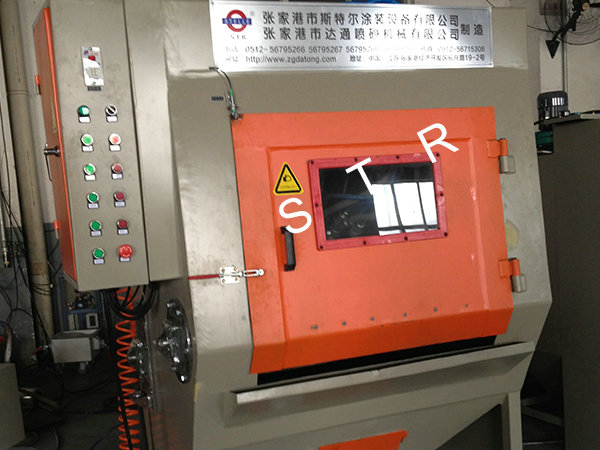

STR-履帶式自動噴砂機(請(qing)向上瀏覽器大量案列相(xiang)冊圖(tu)片(pian)供分類)
◆設備優勢 Product features
1、配備指定時間會自動(dong)噴砂,點(dian)動(dong)準確定位工作。
2、工件表(biao)面裝(zhuang)車(che)更(geng)方(fang)便(bian),操(cao)控簡約,合理利(li)用(yong)人工手(shou)動操(cao)作資源的。
3、滾軸尺寸規格(ge)及噴(pen)頭型號(hao)使(shi)用量可(ke)視(shi)合作方耍求快速設置。
4、適用于(yu)于(yu)的(de)細小工件(jian)的(de)的(de)文件(jian)在(zai)批(pi)量(liang)生產方式(shi),如(ru)拉鎖頭、螺栓等加工處理(li)。
1.It has regular automatic spray sand, the point start positioning function.
2.workpiece loading and unloading convenient, simple operation, and save the human resources.
3.roller dimensions and the number of guns can set according to customer requirement.

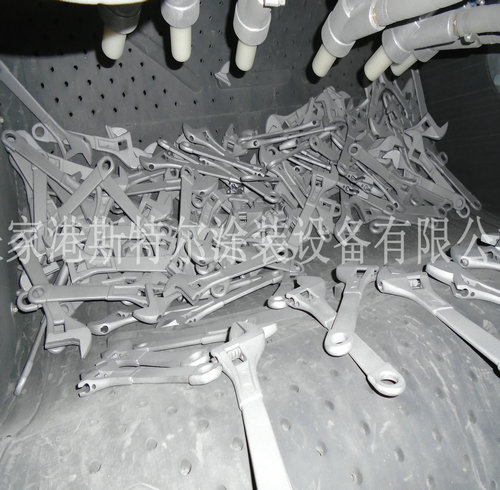

4.It is suitable for small batch production of workpiece, such as zipper head and screws and processing.
◆大部分工藝技術指標 Main technical parameters
|
機應用 Model |
STR-履帶式自動噴砂機 |
|
主機設備外觀設計的尺寸 Air end shape dimensions |
L1140×W1000×H1860mm |
|
滾筒軸的尺寸 Roller size |
500×600mm |
|
總是 工作量 Every processing capacity |
30-50kg |
|
輥筒發電機 Roller motor |
50HZ ac 380V 3-11KW |
|
滾軸發動機轉速 Roller speed |
10RPM |
|
拆分器減速機Separator moto |
380V 50HZ 3KW |
|
熱空氣源必須 Air source requirement |
pressure 2-7 kg/cm2 |
|
耗氣量 Gas consumption |
每噴頭型號1m3/min(據噴咀的數量而定) |
